Information UNBOUND # 5

Object Based Semantic NetworksTM
Toward a Fusion of Knowledge Representation and the Relational Model

September 21, 2000

Executive Summary: Organizations today are experiencing an accelerating need to capture more of the meaning present in data, be it in data warehousing, data mining, web personalization, knowledge management, or intelligent user interfaces catering to a new and rapidly expanding community of users. The task of capturing meaning is typically left to the application developer without support from underlying systems. We consider what it will take for the approaches to knowledge representation and inferencing, first developed in AI and robotics, to be fused with the Relational Model of data at a fundamental level. The solution, which we call Object Based Semantic Networks, bridges and resolves a deep dichotomy of the relational philosophy, namely that between data and metadata. Applying this approach could lead to system software that directly supports enterprise-class management of semantic information and knowledge.


Researchers in artificial intelligence have proposed and developed laboratory and “point” solutions for capturing and representing real-world knowledge for over 3 decades, yet these technologies have been glacially slow to infiltrate the world of commercial products. This is surprising considering the ongoing need to capture ever more knowledge of the enterprise - its entities, attributes, processes, and actions - all within a robust, industry standard framework that is accessible to numerous and multifarious applications and employing commodity-off-the-shelf software and systems. Ted Codd observed this trend in the late 1970’s, acknowledging that the quest to capture more meaning is never ending, and responded with RM/T, the extended Relational Model.

Today, the need to extract and manage knowledge on a global scale is accelerating, with nary a fundamental solution in sight. This author is of the opinion that Ted was absolutely correct in his choice of strategy - to push more of the knowledge down into the system technology that manages our data, namely the RDBMS.

Beginning in the early to mid-1980’s we began an assessment of AI knowledge representation systems, searching for their strengths and weaknesses. As our project progressed we discovered significant limitations to these systems, of both a design and implementation nature. It became clear that properties foundational to the Relational Model, and of great value, were totally absent from the AI-inspired schemes. An excellent example of one such foundational property is the Relational Model’s basis in values for relation variables - and nothing but values. Contrast this with the fundamental dichotomy imposed by semantic networks and frame systems - nodes for concepts, instances, and values vs. edges for relationships and properties.

As this endeavor progressed we sought strategies for abstracting the best qualities and principles of AI knowledge representation from their research-oriented implementations, in order to  reinstantiate these qualities using Relational principles. This is not to say that we considered Relational to be flawless - it too had its dichotomies and tradeoffs, e.g., the distinction between data and metadata and the caste system this created in terms of tools and roles (how far apart be the DBA and the data entry clerk, but I digress).

So, off to find synergy!

It was gratifying to find that we could design and implement semantic networks on top of a Relational footing, even supporting very advanced features such as inheritance with exceptions using non-monotonic reasoning and disambiguation of requests stated in natural language. We first called these systems Value Based Semantic Networks, later generalized to Object Based Semantic Networks. This, however, required sophisticated application logic that was not an integral part of the DBMS - rather it was supported by the application managing the knowledge, relying on the RDBMS to implement set theory and carry out its operations. This also meant that specific optimizations could not be made because the RDBMS had no awareness that it was managing data and knowledge-data (as opposed to only data). On the bright side, we were able to implement all of the required application logic declaratively in SQL (yes, in SQL, despite its shortcomings).

But what would it take to achieve these same ends within the RDBMS, as opposed to atop it?


Researchers in knowledge representation have identified many very powerful concepts. Below, I present three of these ideas, all intimately related, by way of example. I then outline how one approach to infusing the Relational Model with more meaning, Codd’s RM/T, prevents the realization of these ideas directly within the Relational context. Lastly, I sketch a direction to instantiate these concepts using Relational principles. Consider it a demonstration that such is indeed possible (not that this is the only way to go). I encourage educated analysis and critique of this effort. Our hope is to get us moving effectively and surely down this road without further delay.

Three valuable interrelated ideas from knowledge representation

Data unified with metadata

A semantic network is a level playing field for abstract concepts and concrete instances - both can be attributed, enter into relationships, and be created, modified, and managed with the very same tools and interfaces. In contrast to RDBMSes (and importantly the tools and culture that developed around them), which enforce a distinction between relations of application data and the catalog relations that manage data about the application data, semantic networks are a flat structure where data, metadata, meta-metadata, and so forth, form one continuous braid. An AI system may initially identify an entity as an instance and only later, having expanded its context, reclassify the entity as an abstraction. For example, a visual artifact may at first be classified by an autonomous mobile robot only as an entity. Then, as the robot’s context expands through exploration of its environment, the entity is reclassified as a blockade. Then with further exploration, furniture. Then a table. Then a coffee table. This evolution presents no problem for a semantic network - its levels of abstraction are fluid, not rigid. In all fairness I must add that in the Relational Model both data and metadata, while divided and so labeled, are both managed as relations. But as we shall see later in this paper this treatment does not in itself accomplish our objective.

Abstract concepts can be attributed and enter into relationships (the equal of concrete instances and treated uniformly)

A conceptual abstraction, represented by a concept node in a semantic network, can be directly attributed. For example, a concept for elephant can be attributed with the property that an elephant has an anatomical part called a trunk. This is accomplished with the same straightforwardness as attributing a concrete instance with a property, such as that Clyde was born in December of 1970. Once the concept is attributed all of its instances are inferred to possess the same attribute. So if Clyde is an instance of the concept elephant, and elephants have the property of having a trunk, then Clyde is inferred to have a trunk, without the need to explicitly represent that Clyde has a trunk. Furthermore, that Clyde’s elephant friend Bonnie possesses a trunk, and Clyde’s father and mother have trunks, and so on.

Efficient inheritance with support for exceptions

Let’s add a bit of additional detail to the previous example. Suppose we wish to represent that Clyde’s body, as an elephant, carries out the process of cellular respiration. Rather than associate this property directly with Clyde, a concrete instance, we observe that elephants are mammals, which in turn are vertebrates, and so on up the phylogenetic tree, until we come to animals, which are a form of living organism. We note that every living organism maintains a metabolic process, but in the case of animals this process is cellular respiration (as opposed to, say, photosynthesis for plant-based life or fermentation for some forms of single celled organisms).

 We therefore directly attribute the concept living organism with the property of metabolism (while noting that metabolism is a conceptual abstraction in its own right!). When we descend the concept hierarchy to the slightly more concrete concept of animal we wish to look to the property of metabolism and specialize this to cellular respiration (which we note is a specialization of the conceptual abstraction metabolism). So we find ourselves intermingling conceptual hierarchies here, forming a conceptual graph (intertwining the living organism conceptual hierarchy with the metabolism conceptual hierarchy by way of specifying metabolism as a property of living organism - a connection that perpetuates itself down the hierarchies and creates the intertwining - not merely a single point of contact between the two conceptual hierarchies).

Following this course out we are eventually able to infer that Clyde maintains cellular respiration as his metabolic activity, though nowhere in the semantic network were we required to explicitly represent that Clyde carries out cellular respiration (and likewise for the billions of other animal life forms that also conduct cellular respiration!).

This achieves a logical simplicity and captures the functional dependency, animal > metabolic activity = cellular respiration, once and only once. From a Relational perspective one can think of this as a form of conceptual normalization.

But something is lacking. What if Clyde is unique, the product of a fiendish experiment by a mad elephant scientist, named Dr. Frankenphant, who has genetically altered Clyde’s biochemistry and transformed him into a Cyber-elephant, employing cold fusion in each of Clyde’s mitochondria, thereby displacing respiration? How do we override the inference that Clyde respirates? As it happens we do not need to go to such bizarre extremes with our example to discover this commonplace type of problem.

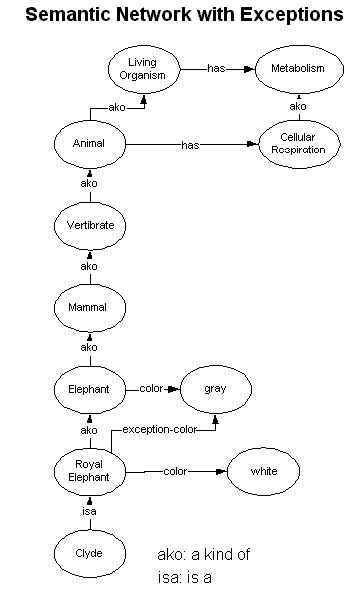

Let’s say that Clyde is not a run of the mill elephant. No, he’s not the product of Dr. Frankenphant’s twisted genius. Rather, Clyde is a royal elephant. And royal elephants are white. So while it is generally correct to infer that elephants in general are gray things it would be incorrect to infer that Clyde is a gray thing as he’s a royal elephant and royal elephants are white things. (As an aside, notice that this takes us into the fields of AI research known as default reasoning and prototypes.) A general purpose semantic network can be expanded to support exceptions to default inference as the figure below illustrates.

In this extended semantic network the inference engine discovers multiple inferential paths.

  • One path concludes that Clyde is a gray thing, reasoning that Clyde is a royal elephant, and royal elephants are elephants, and elephants possess the property that they are gray, and this path has an inference length of 3.
  • Another path concludes that Clyde is white, reasoning that Clyde is a royal elephant, and royal elephants possess the property that they are white, and this path has an inference length of 2.
  • Still another path concludes that Clyde is not a gray thing, reasoning that Clyde is a royal elephant, and royal elephants do not possess the property that they are of color gray (via an exception), and this path has an inference length of 2.

By ordering the inferences in terms of inferential distance the inference engine concludes that Clyde is a white thing, discarding the first inference because it is inconsistent with the inferences who’s paths are more direct, i.e., having a shorter inferential distance.

In this fashion we retain the ability to effect conceptual normalization - representing an assertion at the most general level possible - while handling the oddball exceptions to the rule.

Taken together, these three ideas from knowledge representation make for a powerful system for modeling our knowledge of the world. But how are we to take advantage of such techniques across commercial systems? The next section examines just a couple of the limitation that emerge when we attempt to utilize the facilities of an extended form of the Relational Model.

Aside: There is indeed much more to this story, including numerous complexities for handling the inheritance of general relationships with support for multiple inheritance and exceptions. An excellent reference is David Touretzky’s “Mathematics of Inheritance Systems”, a formalization of Scott Falhman’s NETL system for representing and using real world knowledge (it is interesting to note that it was Scott Fahlman’s work that inspired Danny Hillis to design and build the Connection Machine).

Incompatibilities between knowledge representation and an extended Relational Model

Codd intended for RM/T to explicitly capture more of the meaning present in the data in the database (as opposed to capturing it in an application). One of the mechanisms provided to support this is entity supertypes/subtypes. In RM/T an entity is represented by the occurrence of exactly one tuple in a relation that represents the entity’s type. For example, the entity in question, say a salesman named Mike, could be represented by a tuple in a relation named Salespeople that represents the entity type for salesperson. But this is just the beginning. Perhaps we wish to capture that salespeople are a specific kind of employees. Since employees constitute an entity type, and are consequently represented by a relation named Employees, it is possible in RM/T to define the entity type Salespeople as a subtype of the entity type Employees (and conversely that the entity type Employees is a supertype of the entity type Salespeople).

Note: This begins to come perilously close to the supertable/subtable concept that Chris Date has convincingly argued is both questionable and unnecessary, but in the case of RM/T it is the entity types that are in a super/sub relationship and not tables per se.

RM/T insists that if the tuple representing Mike belongs to the relation that represents the Salespeople entity type, and if the Salespeople entity type is a subtype of the entity type for Employees, then a tuple representing Mike must also belong to the relation that represents the Employee entity type. Were there further entity super/sub type relationships involving the entity type Employees, extending up an arbitrary number of hierarchic levels, then a tuple representing Mike must belong to the relations representing each and every one of these entity types.

Were we to attempt to reinstantiate the Clyde example in RM/T, we would find a tuple for Clyde in every relation for every entity type, all the way up to living organism (and beyond). Further, we could not simply note the fact that animals employ cellular respiration as their metabolism once and once only, but would likely need to represent this fact as an attribute value, once for each and every animal, each represented by a tuple, in a relation that represents the entity type living organism. That’s a lot of repetition!

Going further, this author does not see how it would be possible to override the explicit representation of properties, such as Clyde’s color. Consider the two following options to handle this situation in RM/T.

Option 1: Clyde is an entity of type Elephant, which would be a subtype of type Gray Thing. A tuple representing Clyde then belongs to a relation named Elephants and a related tuple, also representing Clyde, belongs to a relation named GrayThings.

Option 2: Clyde is an entity of type Royal Elephant, which would be a subtype of the entity type WhiteThing. A tuple representing Clyde then must belong to a relation named RoyalElephants and a related tuple, also representing Clyde, belongs to a relation named WhiteThings.

Option 1 and 2 are logically inconsistent. We cannot allow the entity type Royal Elephant to be a subtype of the entity type Elephant, as this would create a logical inconsistency, i.e., if a tuple for Clyde belongs to Elephant then there must be a related tuple present in GrayThings - by way of RM/T Integrity Rule 8 (Subtype Integrity) - but since Clyde is not gray, a tuple representing him must not belong to GrayThings.

The extended Relational Model does not permit efficient representation of knowledge without becoming inconsistent.

Object based Semantic NetworksTM - A New Direction compatible with Relational Principles

Clearly, RM/T, and the Relational Model in general, are based on classical logic on which classical set theory rests, and these models of data exist unaware of default logics and non-monotonic reasoning. But this author questions whether the structural component of a data model must mandate the logic, which may be more appropriately enforced by the manipulative and integrity constraint components of the model. Perhaps the structural component can be sufficiently general so as to support non-classical logic, and therefore extended forms of inference and reasoning.

Getting more concrete, what if every entity type were to possess not one but two distinct, albeit complementary, representations? In the following scheme both aspects of an entity are represented, the entity as a type and the entity as an instance.

o        Representation 1 - entity-as-type: a relation whose tuples are instances of the entity type.

o        Representation 2 - entity-as-instance: one (or more) tuples where each tuple belongs to a relation representing a supertype of the entity.

Applying this to the Clyde example Royal Elephant would have two representations:

o        entity-as-type: Royal Elephant would be a relation that contains tuples representing instances of royal elephants (including Clyde)

o        entity-as-instance: Royal Elephant would also be a tuple that belongs to a relation representing the entity type Elephant.

Following this scenario, Elephant would in turn have two representations:

o        entity-as-type: Elephant would be a relation that contains tuples representing subtypes of elephants

o        entity-as-instance: Elephant would also be a tuple that represents the elephant as a subtype of mammal (by belonging to a relation that is an entity-as-type representationsa of mammal).

This would continue up the phylogenetic tree, ultimately reaching a relation that represents living organism (an entity-as-type representation), which would contain a tuple representing animal (an entity-as-instance representation). And here, in the living organism relation, would we represent that an animal has as its metabolism cellular respiration - in this one place only (we could of course employ an RM/T associative or characteristic entity to represent this property, rather than providing an attribute value, but this does not change the general approach nor the result).


As a consequence of drawing the distinction between data and metadata, the Relational Model imposed a dichotomy between instances and types, a distinction that we now recognize, thanks to robotics, as relative and subject to context, not hard and absolute. One possible way through is to remove the dichotomy - simply recognizing that entities have complementary aspects and what an entity is must be reasoned based on context. This could lead to modifications of our thinking in AI as well, where instance vs. class and isa vs. ako must similarly be inferred on a case-by-case basis. If you’re thinking that this also impacts programming paradigms, software design, and software engineering, including UML (Unified Modeling Language), you’re probably right.

On a more concrete level, this sketch shows us how we can proceed towards attributing entity types, not just attributing entities. Is this sufficient to represent conceptual abstractions and concrete instances within the Relational Model? Clearly there would need to be modifications to the manipulative and integrity components of the model to enforce the desired behavior and inference reasoning, and likely additional relations and attributes, both base and derived, to capture exceptions and enable tuples that represent concrete instances to be joined with tuples that represent their related conceptual abstractions on up the inheritance graph.

What is most exciting is the possibility to achieve advanced knowledge representation capabilities without giving up the Relational Model’s basis in implicit value-based relationships that are explicated via operators, its well understood and proven foundation in mathematical knowledge, and what is arguably the most successful, mature technology of the software economy (not something to discard lightly, or at all).

And to think, these advanced knowledge representation and inferencing capabilities could well become integral to the meta-database systems now being designed and developed.

Erick Von Schweber
